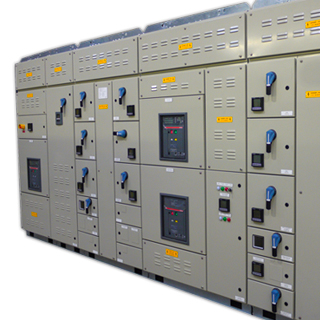

Sub Main Distribution Board

Sub main distribution boards are feed from Main Panels to subsequent feeder’s as point of utilization.


  • Rated upto 800A in accordance to latest IEC Standards.
  • Manufactured in Form II Construction
  • Fault Breaking Capacity upto 50kA/1Sec
  • Rated operating voltage upto 690V
  • Cable entry can be either from Top/Bottom with removable gland plates as per the site conditions.
  • HDHC Tinned Copper Busbar of suitable size for main & neutral bus & 5% for earth bus with supports of high grade polymer.
  • Stainless Steel, Sheet Steel Metal, GRP enclosure system in Floor/Wall Mounting Configuration is available.
  • Metering, Indication & automation capability are optional based on customized project requirement.
